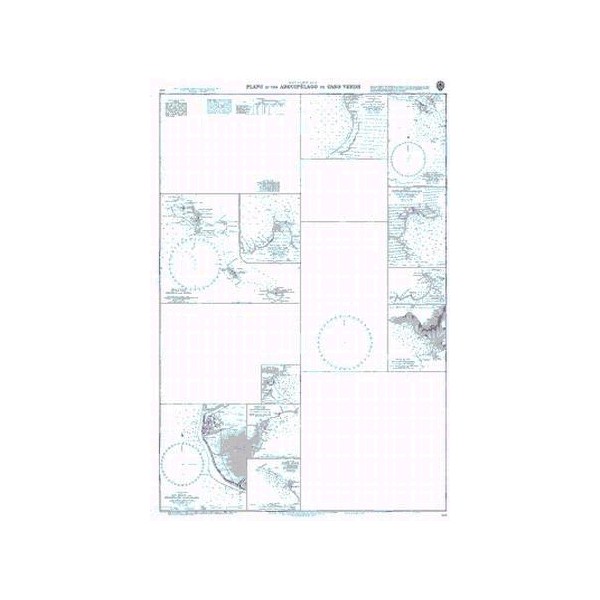

Plans in the Arquipelago de Cabo Verde

Chart Size 966 x 661 (mm)Chart Panel Details Panel Name Sta Luzia, Branco and Razo Natural Scale 90440 North Limit East Limit South Limit West Limit 16° 48'.50N 24° 32'.75W 16° 36'.00N 24° 49'.25W Panel Name Porto de Sal Rei Area Name Ilha da Boa Vista Natural Scale 50000 North Limit East Limit South Limit West Limit 16° 10'.94N 22° 56'.35W 16° 05'.16N 23° 00'.08W Panel Name Porto Inglez Area Name Ilha de Maio Natural Scale 24500 North Limit East Limit South Limit West Limit 15° 08'.90N 23° 13'.31W 15° 07'.25N 23° 15'.02W Panel Name Baia do Tarrafal Area Name Ilha de Sao Tiago Natural Scale 18500 North Limit East Limit South Limit West Limit 15° 17'.76N 23° 45'.62W 15° 16'.21N 23° 47'.00W Panel Name Ponta do Sol Area Name Ilha de Santo Antao Natural Scale 18000 North Limit East Limit South Limit West Limit 17° 12'.87N 25° 05'.39W 17° 11'.30N 25° 06'.83W Panel Name Porto de Pedra de Lume Area Name Ilha do Sal Natural Scale 18000 North Limit East Limit South Limit West Limit 16° 46'.17N 22° 53'.38W 16° 44'.35N 22° 54'.74W Panel Name Porto da Faja Area Name Ilha Brava Natural Scale 17500 North Limit East Limit South Limit West Limit 14° 52'.38N 24° 44'.28W 14° 51'.60N 24° 45'.59W Panel Name Porto da Preguica Area Name Ilha de S. Nicolau - Baia de S. Jorge Natural Scale 12230 North Limit East Limit South Limit West Limit 16° 34'.22N 24° 16'.38W 16° 33'.39N 24° 17'.24W Panel Name Tarrafal do Monte Trigo Area Name Ilha de Santo Antao Natural Scale 12000 North Limit East Limit South Limit West Limit 16° 57'.54N 25° 18'.50W 16° 56'.30N 25° 19'.75W Panel Name San Filipe and Encarnacao Anchorages Area Name Ilha do Fogo Natural Scale 10000 North Limit East Limit South Limit West Limit 14° 53'.69N 24° 30'.27W 14° 52'.35N 24° 31'.39W Panel Name Pto de S. Tiago Area Name Ilha de S. Tiago Natural Scale 10000 North Limit East Limit South Limit West Limit 15° 08'.29N 23° 32'.01W 15° 07'.52N 23° 32'.70W
